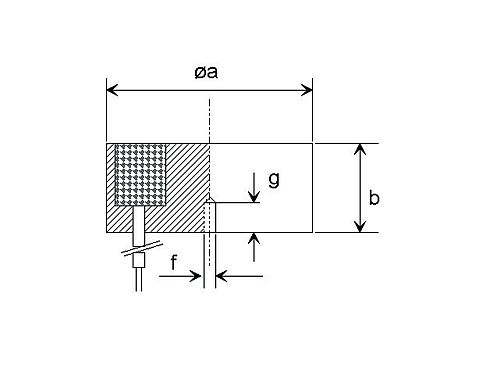

Product Overview DC-Electro-adhesive Magnets
|
Type
|
Adhesive
|
Adhesive Power
|
Required strength
|
Nominal Power
|
Weight
|
Dimension
|
Dimension
|
Thread
|
Dimension
|
|
Surface
|
lift ≈ 0
|
of counterplate
|
P
|
M
|
a
|
b
|
f
|
g
|
|
|
|
ø [mm]
|
FH [N]
|
[mm]
|
[Watt]
|
[kg]
|
[mm]
|
[mm]
|
[mm]
|
|
| EM015 | 15 | 36 | 2 | 1,4 | 0,02 | 15 | 12 | M3 | 6 |
| EM018 | 18 | 40 | 2 | 1,4 | 0,017 | 18 | 11 | M3 | 5 |
| EM025 | 25 | 140 | 3 | 3,2 | 0,06 | 25 | 20 | M4 | 6 |
| EM03C | 32 | 230 | 3,6 | 3,6 | 0,11 | 32 | 22 | M4 | 6 |
| EM04C | 40 | 450 | 4,5 | 5,2 | 0,2 | 40 | 25,5 | M5 | 8 |
| EM05C | 50 | 700 | 6 | 6,5 | 0,3 | 50 | 27 | M5 | 8 |
| EM06C | 63 | 950 | 7 | 9 | 0,55 | 63 | 30 | M8 | 12 |
| EM07C | 70 | 1500 | 8 | 12 | 1,1 | 70 | 35 | M8 | 12 |
| EM08C | 80 | 1800 | 9 | 15 | 1,2 | 80 | 38 | M8 | 12 |
| EM09C | 90 | 3000 | 12 | 14 | 1,8 | 90 | 42 | M8 | 12 |
| EM10C | 100 | 3200 | 10,5 | 20,5 | 2,1 | 100 | 43 | M10 | 15 |
| EM15C | 150 | 9000 | 17 | 37 | 6,4 | 150 | 56 | M16 | 24 |
| EM18C | 180 | 15000 | 21 | 50 | 10,5 | 180 | 63 | M24 | 36 |
| EM25C | 250 | 30000 | 29 | 90 | 25,9 | 250 | 80 | M24 | 36 |
